DSA Interview Questions Arrays, Trees & Graphs Problems

Data Structures and Algorithms (DSA) interview questions are a critical part of technical job interviews, especially in software companies and multinational organizations hiring Pakistani talent in Lahore, Karachi, Islamabad, and beyond. Arrays, trees, and graphs are some of the most frequently tested topics in coding interviews. Understanding these problems is essential not just to crack interviews but also to build a strong foundation for solving real-world problems efficiently.

Pakistani students often face challenges because of limited exposure to optimized approaches and lack of real-life contextual examples. This tutorial will guide you through arrays, trees, and graphs problems, providing practical code examples, common mistakes, exercises, and FAQs to boost your confidence in interviews.

Prerequisites

Before diving into advanced DSA interview problems, you should have a solid understanding of the following:

• Basic programming in Python, Java, or C++
• Time and space complexity analysis (Big O notation)
• Fundamental data structures: arrays, linked lists, stacks, queues, hash maps
• Basic graph theory: nodes, edges, adjacency list/matrix
• Recursion and iterative problem-solving

Core Concepts & Explanation

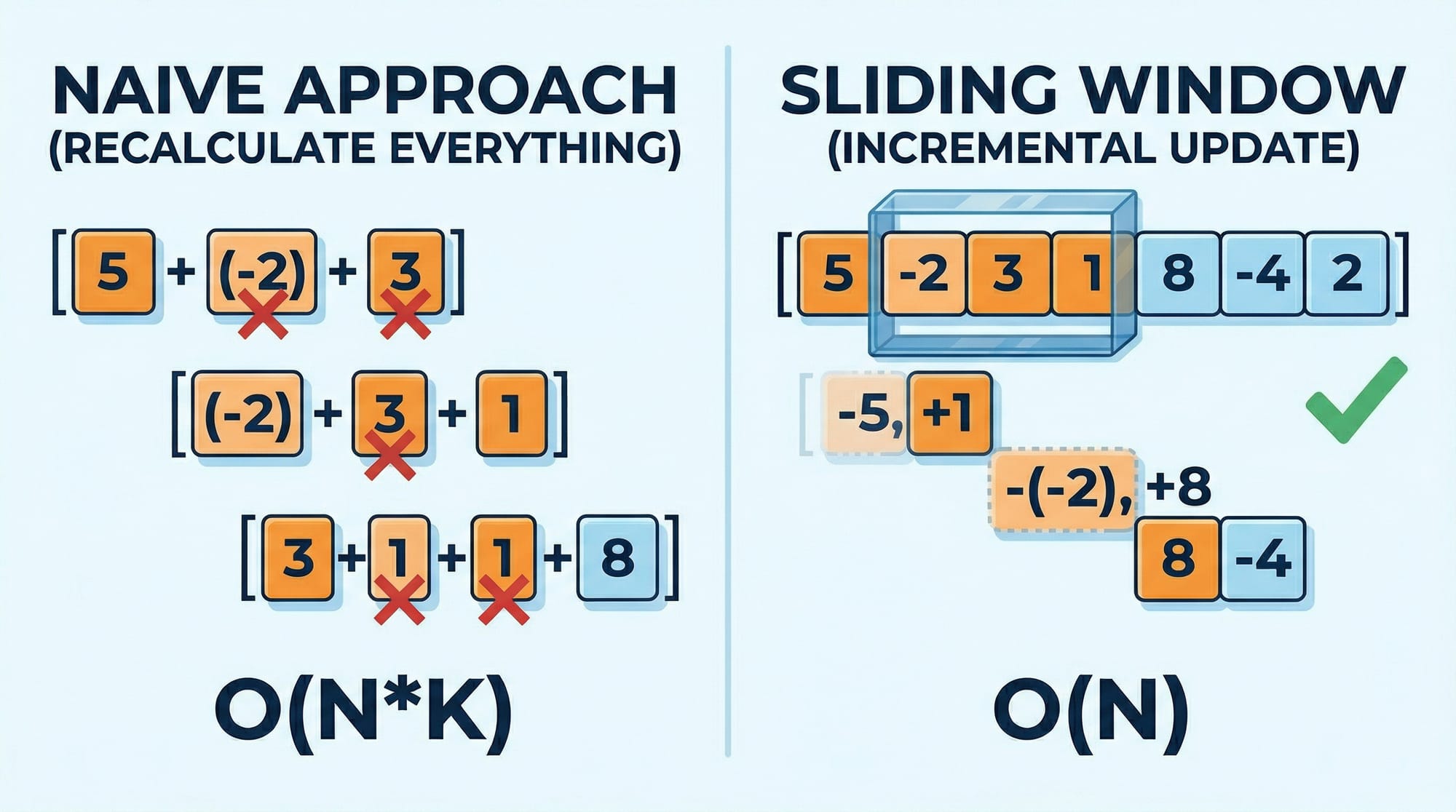

Arrays & Sliding Window Techniques

Arrays are one of the simplest yet most powerful data structures in interviews. Many problems require optimizing naive O(n²) solutions to linear O(n) time complexity using techniques like sliding window.

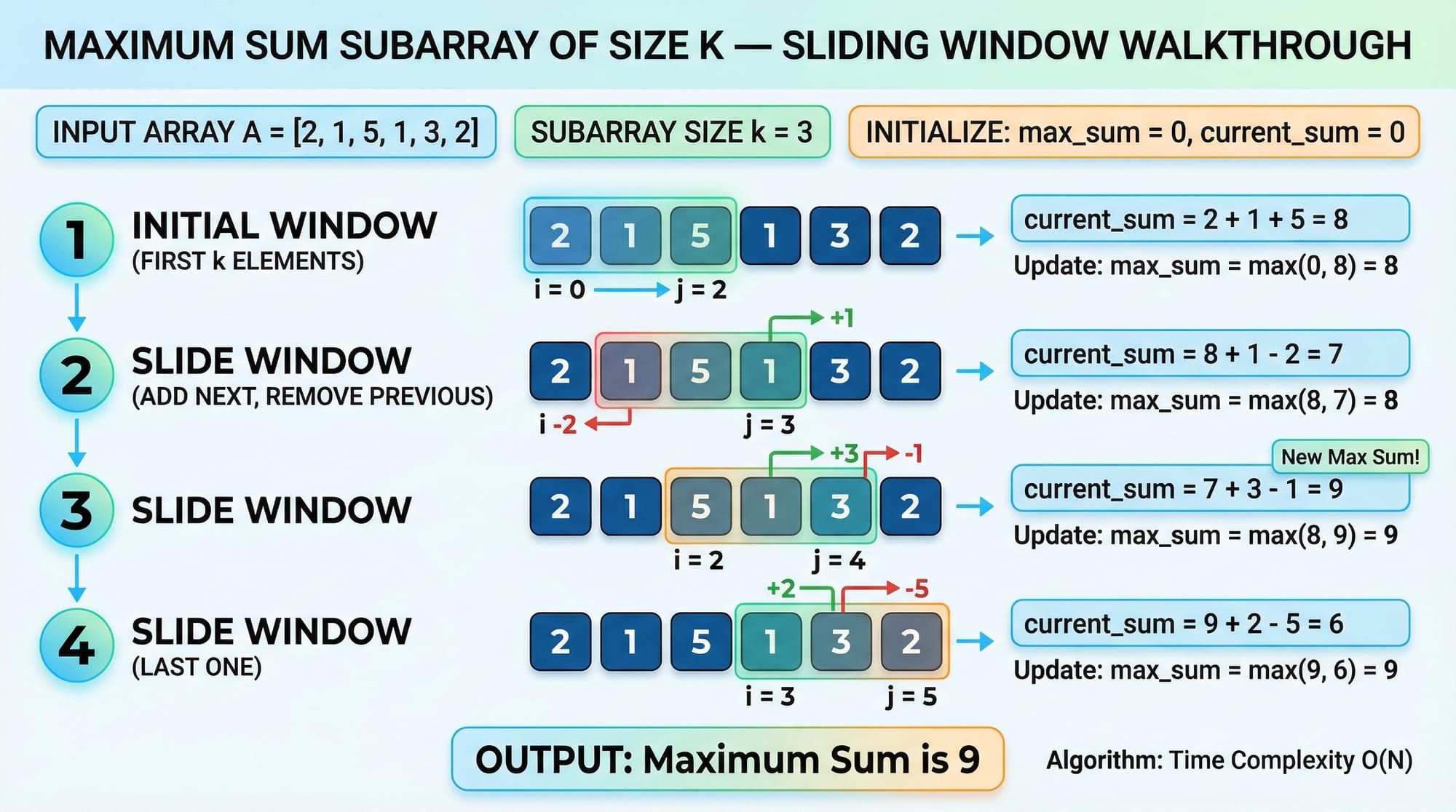

Example: Maximum sum subarray of size k

def max_sum_subarray(arr, k):
    max_sum = 0
    window_sum = sum(arr[:k])  # sum of first 'k' elements
    max_sum = window_sum

    for i in range(len(arr) - k):
        window_sum = window_sum - arr[i] + arr[i+k]  # slide the window
        max_sum = max(max_sum, window_sum)

    return max_sum

arr = [2, 1, 5, 1, 3, 2]
k = 3
print(max_sum_subarray(arr, k))  # Output: 9

Explanation line by line:

1. Calculate sum of first k elements.
2. Initialize max_sum with window_sum.
3. Slide the window by subtracting the first element and adding the next.
4. Update max_sum if the current window sum is larger.
5. Return the maximum sum.

Two Pointers Technique

Used in sorted arrays or linked lists, this technique reduces complexity from O(n²) to O(n) in problems like two-sum, pair sums, or container problems.

Example: Two-sum problem

def two_sum(arr, target):
    left, right = 0, len(arr) - 1

    while left < right:
        curr_sum = arr[left] + arr[right]
        if curr_sum == target:
            return [left, right]
        elif curr_sum < target:
            left += 1
        else:
            right -= 1
    return []

arr = [1, 3, 4, 5, 7, 11]
target = 9
print(two_sum(arr, target))  # Output: [1, 4]

Explanation:

• left starts from beginning, right from end.
• If sum < target, move left; if sum > target, move right.
• Return indices of matching sum.

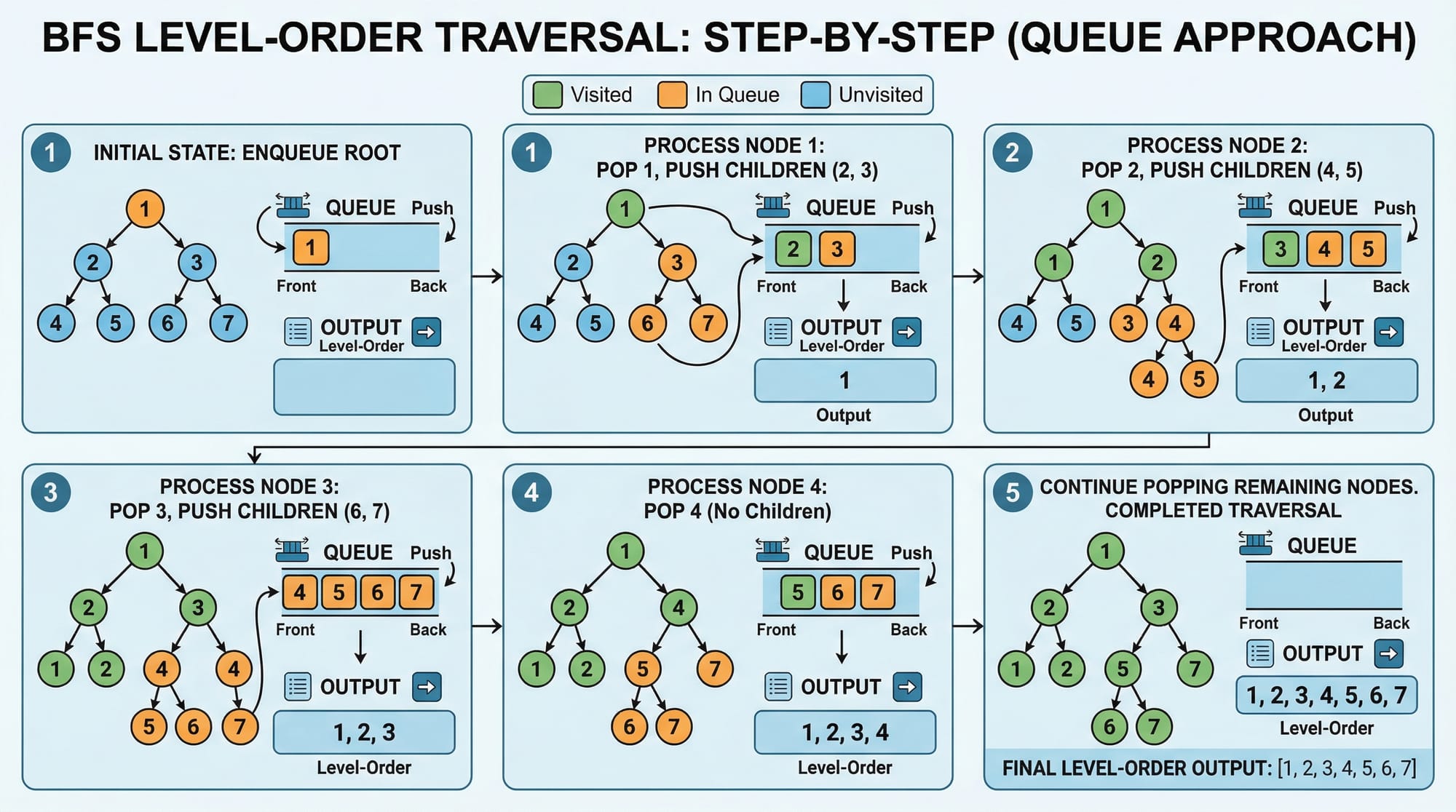

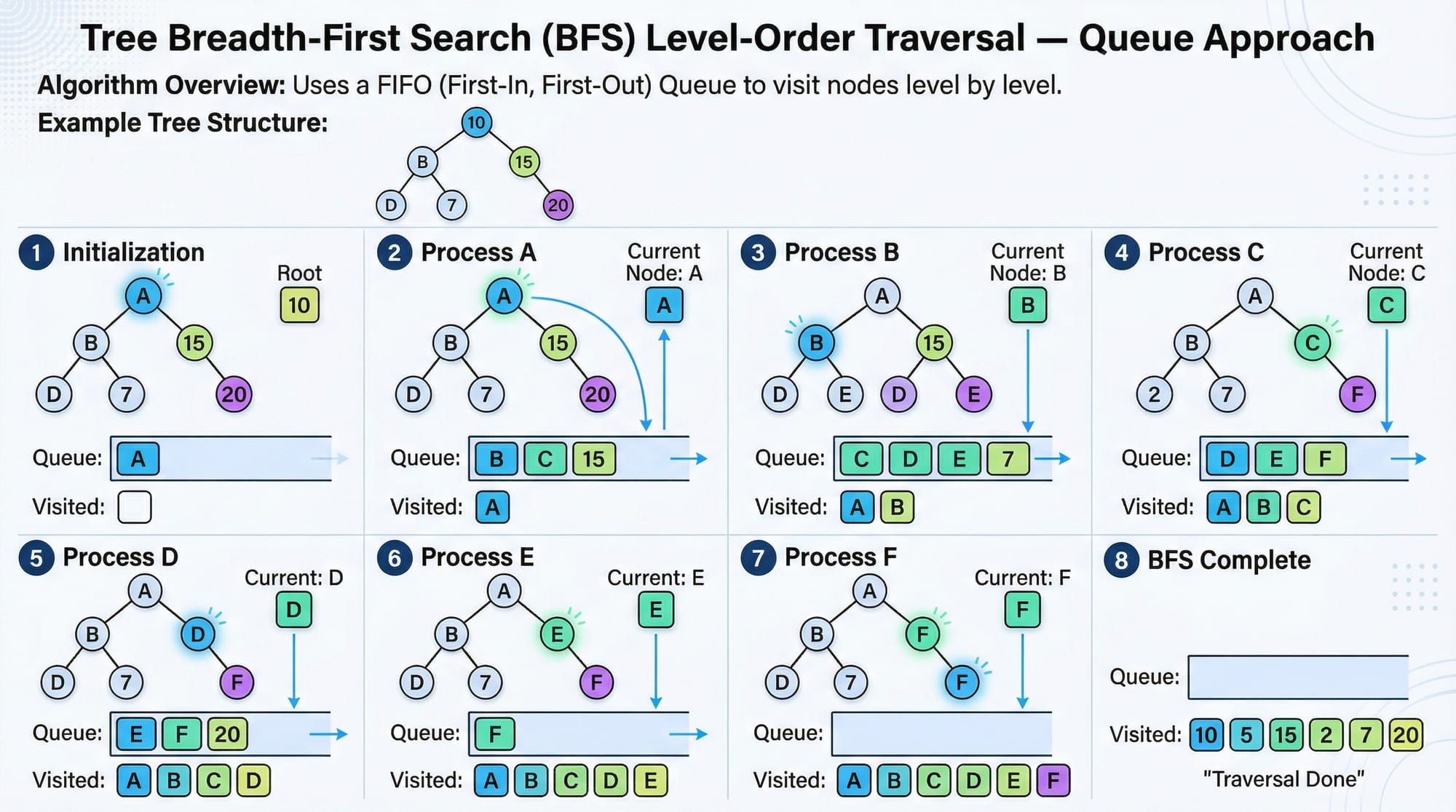

Trees: BFS & DFS

Trees are hierarchical structures often tested in interviews. Binary trees and n-ary trees are common. Understanding BFS (level-order) and DFS (preorder, inorder, postorder) traversal is essential.

Example: BFS level-order traversal

from collections import deque

class Node:
    def __init__(self, val):
        self.val = val
        self.left = None
        self.right = None

def bfs(root):
    if not root:
        return []
    queue = deque([root])
    result = []
    while queue:
        node = queue.popleft()
        result.append(node.val)
        if node.left:
            queue.append(node.left)
        if node.right:
            queue.append(node.right)
    return result

root = Node(1)
root.left = Node(2)
root.right = Node(3)
root.left.left = Node(4)
root.left.right = Node(5)

print(bfs(root))  # Output: [1, 2, 3, 4, 5]

Explanation:

• Initialize a queue with root node.
• Pop from queue, append value to result.
• Add left and right children to the queue.
• Continue until queue is empty.

Graphs: Adjacency List & DFS Traversal

Graphs represent real-world networks like roads in Islamabad or Lahore’s metro map.

Example: DFS traversal

def dfs(graph, start, visited=None):
    if visited is None:
        visited = set()
    visited.add(start)
    print(start, end=' ')
    for neighbor in graph[start]:
        if neighbor not in visited:
            dfs(graph, neighbor, visited)

graph = {
    'Lahore': ['Karachi', 'Islamabad'],
    'Karachi': ['Lahore', 'Quetta'],
    'Islamabad': ['Lahore', 'Peshawar'],
    'Quetta': ['Karachi'],
    'Peshawar': ['Islamabad']
}

dfs(graph, 'Lahore')  # Output: Lahore Karachi Quetta Islamabad Peshawar

Explanation:

• visited tracks nodes already visited.
• Visit node, print it, recursively visit neighbors.
• Stops when all connected nodes are visited.

Practical Code Examples

Example 1: Maximum Subarray Sum (Real-World Use)

sales = [1200, 1500, 1100, 1800, 1300, 1700]  # PKR thousands per day
k = 3

def max_sales_subarray(sales, k):
    max_sum = window_sum = sum(sales[:k])
    for i in range(len(sales) - k):
        window_sum = window_sum - sales[i] + sales[i + k]
        max_sum = max(max_sum, window_sum)
    return max_sum

print(max_sales_subarray(sales, k))  # Output: 4800

• Useful for Ahmad, Fatima, or Ali to analyze weekly sales trends in a Lahore shop.

Example 2: Social Network Friend Graph

friends_graph = {
    'Ali': ['Fatima', 'Ahmad'],
    'Fatima': ['Ali', 'Sara'],
    'Ahmad': ['Ali', 'Sara'],
    'Sara': ['Fatima', 'Ahmad']
}

def mutual_friends(person1, person2):
    return list(set(friends_graph[person1]) & set(friends_graph[person2]))

print(mutual_friends('Ali', 'Ahmad'))  # Output: ['Sara']

• Shows real-world application for social apps popular in Pakistan.

Common Mistakes & How to Avoid Them

Mistake 1: Not Considering Edge Cases

• Empty arrays, single-node trees, or disconnected graphs can break naive solutions.

Fix: Always check inputs first.

if not arr:
    return 0

Mistake 2: Using Brute Force Instead of Optimized Approach

• Example: Using nested loops for two-sum instead of hash map.

Fix: Use hash tables for O(n) solutions.

seen = {}
for i, num in enumerate(arr):
    if target - num in seen:
        return [seen[target-num], i]
    seen[num] = i

Practice Exercises

Exercise 1: Find Peak Element

• Problem: Given an array, find an element greater than its neighbors.

def find_peak(arr):
    for i in range(len(arr)):
        if (i == 0 or arr[i] >= arr[i-1]) and (i == len(arr)-1 or arr[i] >= arr[i+1]):
            return arr[i]

Exercise 2: Detect Cycle in Graph

def has_cycle(graph):
    visited = set()
    def dfs(v, parent):
        visited.add(v)
        for neighbor in graph[v]:
            if neighbor not in visited:
                if dfs(neighbor, v):
                    return True
            elif neighbor != parent:
                return True
        return False
    for node in graph:
        if node not in visited:
            if dfs(node, None):
                return True
    return False

Frequently Asked Questions

What is the best way to prepare for DSA interview questions?

Focus on understanding patterns like sliding window, two pointers, BFS/DFS, and practicing LeetCode problems.

How do I optimize array problems?

Use hash maps, prefix sums, and sliding window techniques to reduce O(n²) solutions to O(n).

Which tree traversal is used most in interviews?

Level-order (BFS) and inorder DFS are commonly tested.

How do I detect cycles in a graph?

Use DFS with visited tracking or Union-Find for undirected graphs.

Are these concepts applicable to real-world apps?

Yes, they are used in social networks, recommendation systems, sales analysis, and route optimization in Pakistan.

Summary & Key Takeaways

• Arrays, trees, and graphs are essential for technical interviews.
• Learn sliding window, two pointers, BFS, DFS for efficient solutions.
• Avoid brute-force approaches; optimize using hash maps and recursion.
• Always consider edge cases in input data.
• Practice real-world applications to strengthen understanding.
