Python Protocol & Structural Subtyping Guide

Zaheer Ahmad 5 min read min read
Python
Python Protocol & Structural Subtyping Guide

Introduction

Python Protocols and structural subtyping are advanced typing features introduced in Python to combine the flexibility of duck typing with the safety of static type checking. Unlike traditional class inheritance, structural subtyping allows you to define interfaces that an object can satisfy implicitly, based on its attributes and methods, rather than explicit subclassing.

For Pakistani students, mastering Python protocols is essential for writing scalable, maintainable, and type-safe applications. Imagine a financial application in Lahore where multiple classes handle different payment methods (bank transfer, JazzCash, Easypaisa). Instead of rigid inheritance, protocols allow you to define a “PaymentProcessor” interface, and any class implementing required methods can be treated as a valid processor — without worrying about the inheritance chain.

This tutorial will guide you through Python typing protocol and structural subtyping Python, with practical examples, common pitfalls, and exercises.

Prerequisites

Before diving into Python Protocols, readers should have:

  • Solid understanding of Python classes and OOP concepts.
  • Familiarity with Python typing module and type hints.
  • Basic knowledge of abstract base classes (ABC).
  • Python 3.8+ installed (for typing.Protocol and @runtime_checkable support).
  • Experience writing small projects in Python (e.g., student management system, payment processors, or basic web apps in Karachi or Islamabad).

Core Concepts & Explanation

Understanding Python Protocols

A Python Protocol is a type hinting mechanism that defines an interface. Any object with matching methods and properties automatically satisfies the protocol. This concept is sometimes referred to as “structural subtyping.”

from typing import Protocol

class Drawable(Protocol):
    def draw(self) -> None:
        ...
  • Line 1: Import Protocol from the typing module.
  • Line 3: Define a protocol named Drawable.
  • Line 4: Any object with a draw method returning None satisfies this protocol.

Structural Subtyping vs Nominal Typing

  • Nominal typing: Types are matched by explicit inheritance.
  • Structural subtyping: Types are matched by presence of attributes/methods.
class Circle:
    def draw(self) -> None:
        print("Drawing a circle")

def render(shape: Drawable) -> None:
    shape.draw()

c = Circle()
render(c)  # ✅ Works, Circle matches Drawable by structure

Here, Circle has no explicit inheritance from Drawable, but it matches structurally.

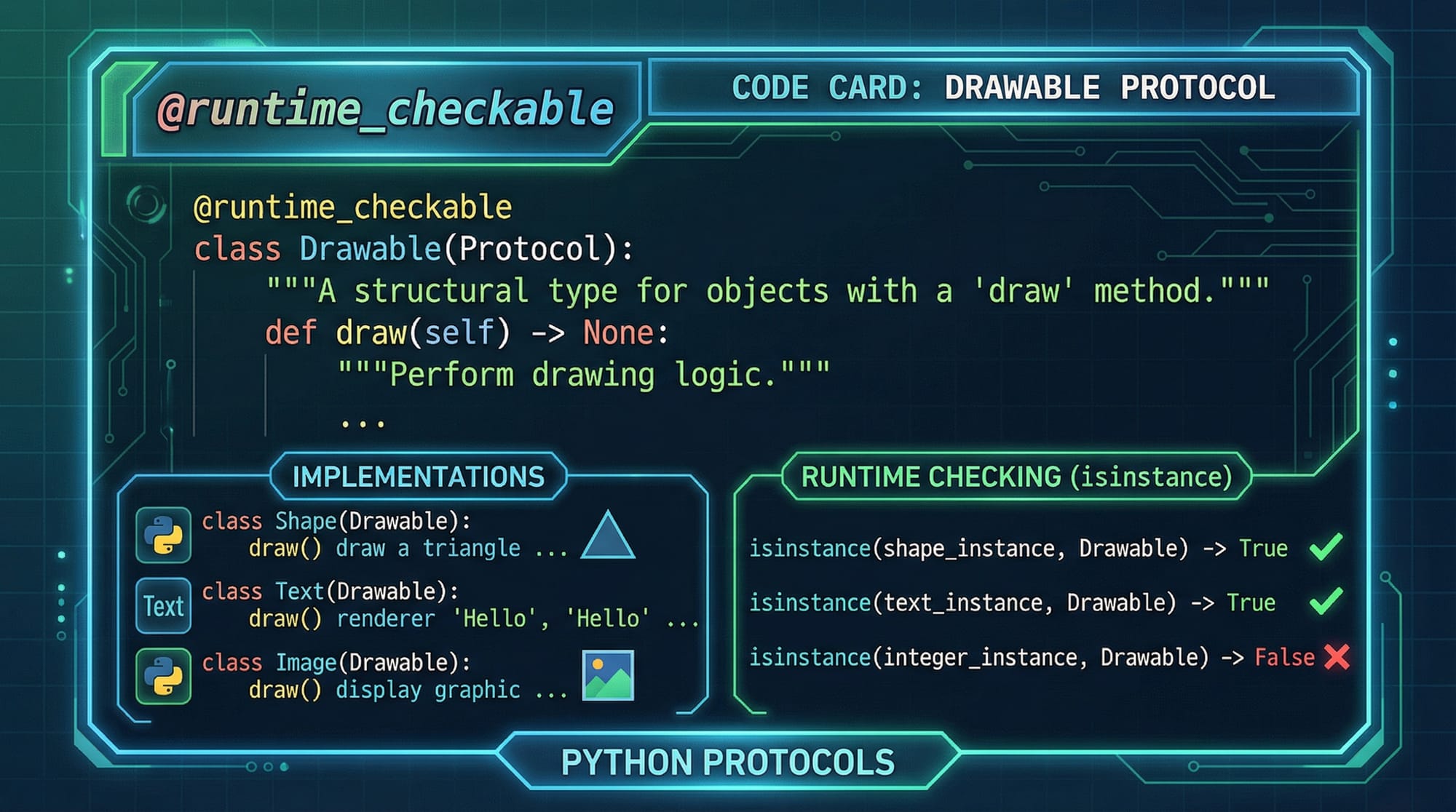

Runtime Checkable Protocols

Some protocols can be checked at runtime with the @runtime_checkable decorator.

from typing import Protocol, runtime_checkable

@runtime_checkable
class Painter(Protocol):
    def paint(self) -> None:
        ...

class Artist:
    def paint(self) -> None:
        print("Painting a landscape in Islamabad")

a = Artist()
print(isinstance(a, Painter))  # True
  • Line 3: @runtime_checkable allows isinstance checks on protocols.
  • Line 7-9: Class Artist satisfies the protocol structure.

Practical Code Examples

Example 1: Payment Processors in Lahore

from typing import Protocol

class PaymentProcessor(Protocol):
    def pay(self, amount: float) -> str:
        ...

class Easypaisa:
    def pay(self, amount: float) -> str:
        return f"Paid PKR {amount} via Easypaisa"

class BankTransfer:
    def pay(self, amount: float) -> str:
        return f"Transferred PKR {amount} via bank"

def process_payment(processor: PaymentProcessor, amount: float):
    print(processor.pay(amount))

e = Easypaisa()
b = BankTransfer()

process_payment(e, 1500.0)  # Paid PKR 1500 via Easypaisa
process_payment(b, 2000.0)  # Transferred PKR 2000 via bank
  • Explanation:
    • PaymentProcessor defines the required interface.
    • Both Easypaisa and BankTransfer classes satisfy the protocol implicitly.
    • process_payment function accepts any object conforming to the protocol.

Example 2: Real-World Application — Shape Renderer

from typing import Protocol

class Shape(Protocol):
    def area(self) -> float:
        ...

class Rectangle:
    def __init__(self, width: float, height: float):
        self.width = width
        self.height = height

    def area(self) -> float:
        return self.width * self.height

class Circle:
    def __init__(self, radius: float):
        self.radius = radius

    def area(self) -> float:
        import math
        return math.pi * self.radius ** 2

def total_area(shapes: list[Shape]) -> float:
    return sum(shape.area() for shape in shapes)

shapes = [Rectangle(10, 20), Circle(7)]
print(f"Total area: {total_area(shapes)}")
  • Explanation:
    • Shape protocol ensures any object with an area method can be processed.
    • Rectangle and Circle automatically satisfy it without inheritance.
    • total_area function is flexible and type-safe.

Common Mistakes & How to Avoid Them

Mistake 1: Ignoring Required Methods

class Triangle:
    pass

# This will fail type checking
# total_area([Triangle()])
  • Fix: Implement the required methods defined in the protocol.
class Triangle:
    def __init__(self, base: float, height: float):
        self.base = base
        self.height = height

    def area(self) -> float:
        return 0.5 * self.base * self.height

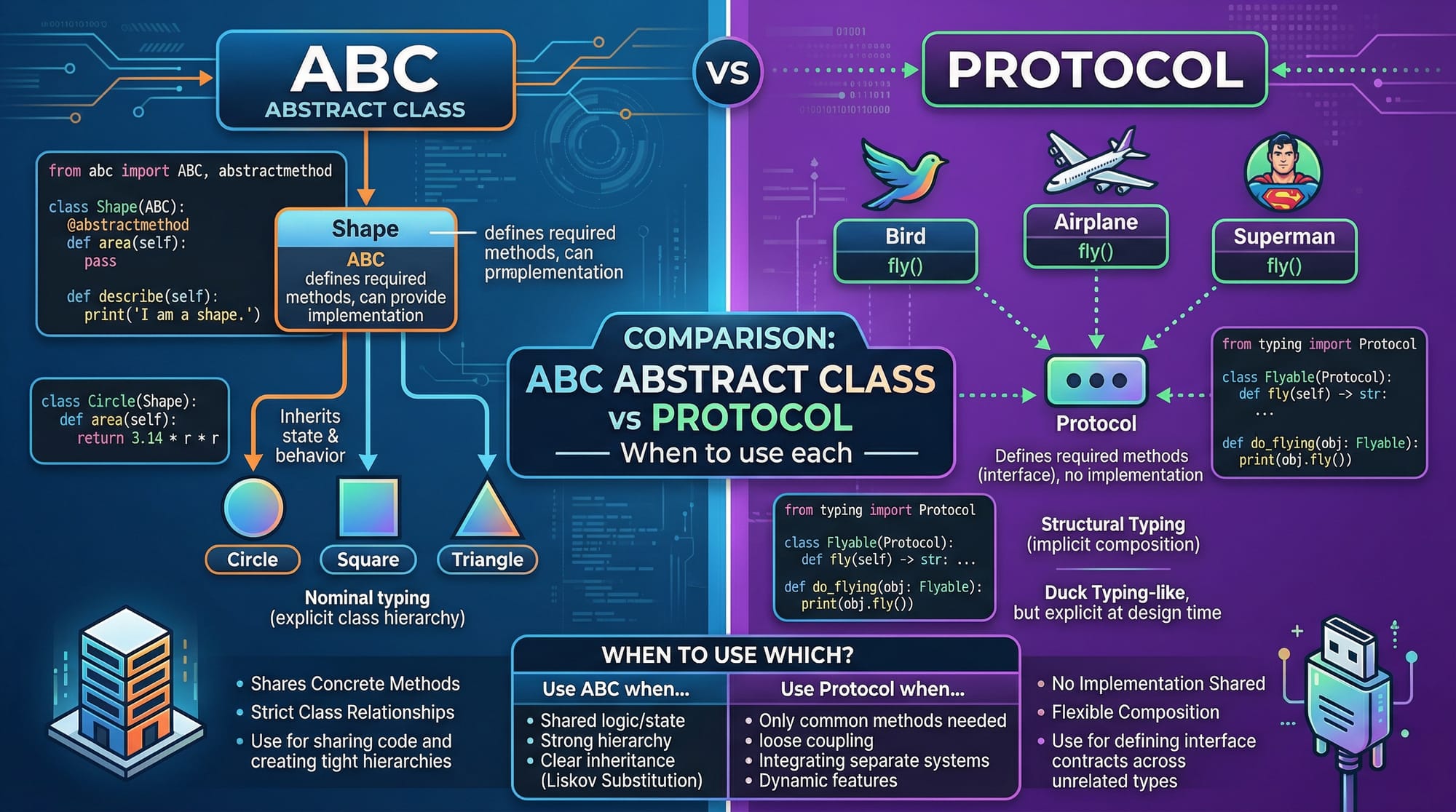

Mistake 2: Confusing Protocols with ABCs

  • Issue: Protocols are not abstract classes; they are mainly for typing.
  • Fix: Use ABCs when you need runtime inheritance or shared behavior.
from abc import ABC, abstractmethod

class DrawableABC(ABC):
    @abstractmethod
    def draw(self) -> None:
        ...

Practice Exercises

Exercise 1: Create a Logger Protocol

Problem: Define a protocol Logger with a log(message: str) method. Implement ConsoleLogger and FileLogger classes that satisfy it.

Solution:

from typing import Protocol

class Logger(Protocol):
    def log(self, message: str) -> None:
        ...

class ConsoleLogger:
    def log(self, message: str) -> None:
        print(f"Console: {message}")

class FileLogger:
    def log(self, message: str) -> None:
        with open("log.txt", "a") as f:
            f.write(f"{message}\n")

def report(logger: Logger):
    logger.log("Payment completed successfully!")

report(ConsoleLogger())
report(FileLogger())

Exercise 2: Vehicle Protocol

Problem: Define a protocol Vehicle with start() and stop() methods. Implement Car and Motorbike classes.

Solution:

from typing import Protocol

class Vehicle(Protocol):
    def start(self) -> None:
        ...
    def stop(self) -> None:
        ...

class Car:
    def start(self) -> None:
        print("Car starting in Karachi")
    def stop(self) -> None:
        print("Car stopped")

class Motorbike:
    def start(self) -> None:
        print("Motorbike starting in Lahore")
    def stop(self) -> None:
        print("Motorbike stopped")

vehicles: list[Vehicle] = [Car(), Motorbike()]
for v in vehicles:
    v.start()
    v.stop()

Frequently Asked Questions

What is a Python Protocol?

A Python Protocol is a type hinting mechanism that defines a structural interface, allowing objects to be type-checked based on their attributes and methods rather than inheritance.

How do I use structural subtyping in Python?

Structural subtyping is used via Protocol classes from the typing module. Any object with the required methods and attributes satisfies the protocol implicitly.

Can I check Protocols at runtime?

Yes, using the @runtime_checkable decorator from typing. This allows isinstance checks on protocol-conforming objects.

How is a Protocol different from an ABC?

A Protocol is mainly for type checking and does not enforce runtime inheritance, whereas an ABC (Abstract Base Class) enforces both runtime inheritance and method implementation.

When should I use Protocols in Python?

Use Protocols when you need flexible, type-safe interfaces for functions or classes, especially in large applications where different objects can implement the same behavior without sharing a common ancestor.

Summary & Key Takeaways

  • Protocols allow duck typing with static checking.
  • Structural subtyping checks type compatibility based on methods and attributes, not inheritance.
  • @runtime_checkable enables runtime isinstance checks for protocols.
  • Protocols are ideal for flexible, maintainable APIs.
  • Protocols complement Python OOP and type hints.
  • Use protocols in real-world applications like payment systems, shape rendering, and logging.
