Python Design Patterns Singleton Factory & Observer

Python design patterns are reusable solutions to common software design problems. They help developers write code that is cleaner, more maintainable, and scalable. Among the most widely used patterns are Singleton, Factory, and Observer.

For Pakistani students learning Python, understanding these patterns is critical. Whether you are building a school management system in Lahore, a PKR transaction tracker in Karachi, or a notification system for a university in Islamabad, design patterns can make your code robust and professional.

This tutorial explores these three patterns in detail, with practical examples, common mistakes, and exercises to help you master them

Prerequisites

Before diving into these design patterns, you should be comfortable with:

• Python basics: variables, functions, classes, objects.
• Object-Oriented Programming (OOP): inheritance, encapsulation, polymorphism.
• Advanced Python concepts: decorators, class methods, and dunder (__new__, __init__) methods.
• Basic understanding of software architecture and design thinking.

Core Concepts & Explanation

Singleton Pattern: Ensuring One Instance

The Singleton Pattern ensures a class has only one instance throughout the application. This is useful when you need a single point of access—for example, a database connection for all PKR transactions in a banking app.

Key Characteristics:

• One instance per class.
• Global point of access.
• Lazy instantiation (optional).

Example Syntax:

Factory Pattern: Object Creation Simplified

The Factory Pattern abstracts object creation. Instead of calling constructors directly, you use a factory method to return objects based on input.

Use case: Creating different types of notifications (Email, SMS, WhatsApp) for students Ahmad, Fatima, and Ali in Pakistan without modifying client code.

Key Characteristics:

• Encapsulates object creation.
• Improves maintainability.
• Reduces code duplication.

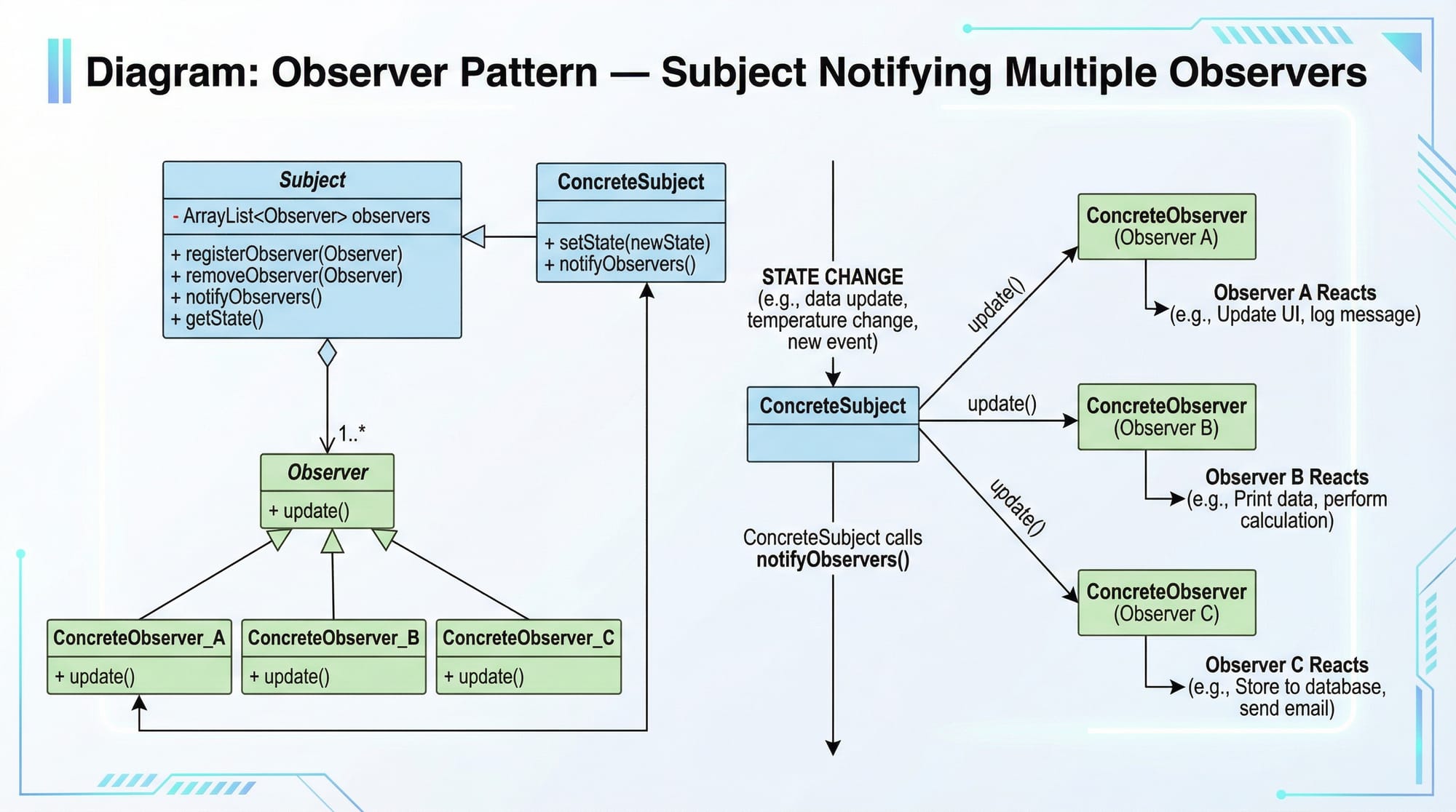

Observer Pattern: One-to-Many Communication

The Observer Pattern allows an object (subject) to notify multiple observers when its state changes.

Use case: A university portal in Islamabad sends notifications to all subscribed students when a new assignment is posted.

Key Characteristics:

• Loose coupling between subject and observers.
• Real-time updates.
• Widely used in event-driven systems.

Practical Code Examples

Example 1: Singleton Database Connection

class Database:
    _instance = None  # Line 2: Store the single instance

    def __new__(cls, *args, **kwargs):
        if not cls._instance:  # Line 5: Check if instance exists
            cls._instance = super().__new__(cls)  # Line 6: Create instance
            print("Creating new database connection")
        return cls._instance  # Line 8: Return the existing instance

# Testing Singleton
db1 = Database()  # Output: Creating new database connection
db2 = Database()  # No output, same instance
print(db1 is db2)  # True

Line-by-line Explanation:

• Line 2: _instance keeps track of the singleton.
• Line 5-6: If no instance exists, create one.
• Line 8: Return the single instance every time.
• This ensures only one database connection is active for all students.

Example 2: Factory Pattern for Notifications

class Notification:
    def notify(self, message):
        raise NotImplementedError("This method should be overridden")

class EmailNotification(Notification):
    def notify(self, message):
        print(f"Email sent: {message}")

class SMSNotification(Notification):
    def notify(self, message):
        print(f"SMS sent: {message}")

# Factory Function
def notification_factory(notification_type):
    if notification_type == "email":
        return EmailNotification()
    elif notification_type == "sms":
        return SMSNotification()
    else:
        raise ValueError("Invalid notification type")

# Usage
students = ["Ahmad", "Fatima"]
for student in students:
    notifier = notification_factory("email")
    notifier.notify(f"Hello {student}, your class starts at 9 AM in Karachi")

Line-by-line Explanation:

• Classes: Define notification types.
• Factory: Returns the correct notification object.
• Usage: Easy to add new types (e.g., WhatsApp) without changing client code.

Example 3: Observer Pattern — Student Alerts

class Subject:
    def __init__(self):
        self._observers = []  # List of subscribers

    def attach(self, observer):
        self._observers.append(observer)

    def notify(self, message):
        for observer in self._observers:
            observer.update(message)

class Student:
    def __init__(self, name):
        self.name = name

    def update(self, message):
        print(f"{self.name} received: {message}")

# Usage
portal = Subject()
student1 = Student("Ali")
student2 = Student("Fatima")

portal.attach(student1)
portal.attach(student2)

portal.notify("New assignment posted in Lahore")

Explanation:

• Subject: Manages observers (students).
• Student: Receives notifications.
• notify(): Sends updates to all attached observers.
• Perfect for real-time university notifications in Pakistan.

Common Mistakes & How to Avoid Them

Mistake 1: Multiple Singleton Instances

# Incorrect: Using __init__ instead of __new__
class SingletonWrong:
    def __init__(self):
        print("Creating instance")

Fix: Use __new__ instead of __init__ to control instance creation.

Mistake 2: Overcomplicating Factories

# Incorrect: Factory returns fixed objects, not dynamic
def wrong_factory():
    return EmailNotification()  # No choice parameter

Fix: Accept a type parameter to allow flexibility.

Practice Exercises

Exercise 1: Singleton Logger

Problem: Implement a logger class that writes messages to a file, ensuring only one logger exists for your Islamabad app.

Solution:

class Logger:
    _instance = None

    def __new__(cls):
        if cls._instance is None:
            cls._instance = super().__new__(cls)
            cls._instance.logs = []
        return cls._instance

    def log(self, message):
        self.logs.append(message)
        print(f"Logged: {message}")

Exercise 2: Factory for Vehicles

Problem: Create a factory that returns different vehicles (Car, Bike) based on input. Print their max speed.

Solution:

class Vehicle:
    def max_speed(self):
        pass

class Car(Vehicle):
    def max_speed(self):
        return 180

class Bike(Vehicle):
    def max_speed(self):
        return 120

def vehicle_factory(vehicle_type):
    if vehicle_type == "car":
        return Car()
    elif vehicle_type == "bike":
        return Bike()
    else:
        raise ValueError("Unknown vehicle type")

v = vehicle_factory("car")
print(v.max_speed())  # 180

Frequently Asked Questions

What is the singleton pattern in Python?

It is a design pattern ensuring a class has only one instance globally, commonly used for database connections or loggers.

How do I implement a factory pattern in Python?

Create a factory function or class that returns different object types based on input, reducing code duplication and increasing flexibility.

When should I use the observer pattern?

Use it for real-time updates, like notifying students in Lahore when a new class or assignment is posted.

Can I combine design patterns?

Yes. For example, you can use Singleton for a central notifier and Observer for multiple students.

Are design patterns necessary for small projects?

Not always, but they make your code scalable, maintainable, and professional, especially in team projects or university assignments.

Summary & Key Takeaways

• Python design patterns improve code structure and maintainability.
• Singleton ensures one global instance (e.g., database or logger).
• Factory simplifies object creation and supports flexible extensions.
• Observer enables real-time, decoupled notifications.
• Avoid common mistakes like misusing __init__ for Singleton or overcomplicating factories.
• Design patterns are essential for professional-grade Python applications.

Next Steps & Related Tutorials

• Learn Python OOP for Beginners to strengthen your object-oriented skills.
• Explore Java OOP Concepts to compare design pattern implementation.
• Try Python Decorators and Advanced Functions to enhance Singleton or Observer patterns.
• Study Python Data Structures to build more efficient factories.
